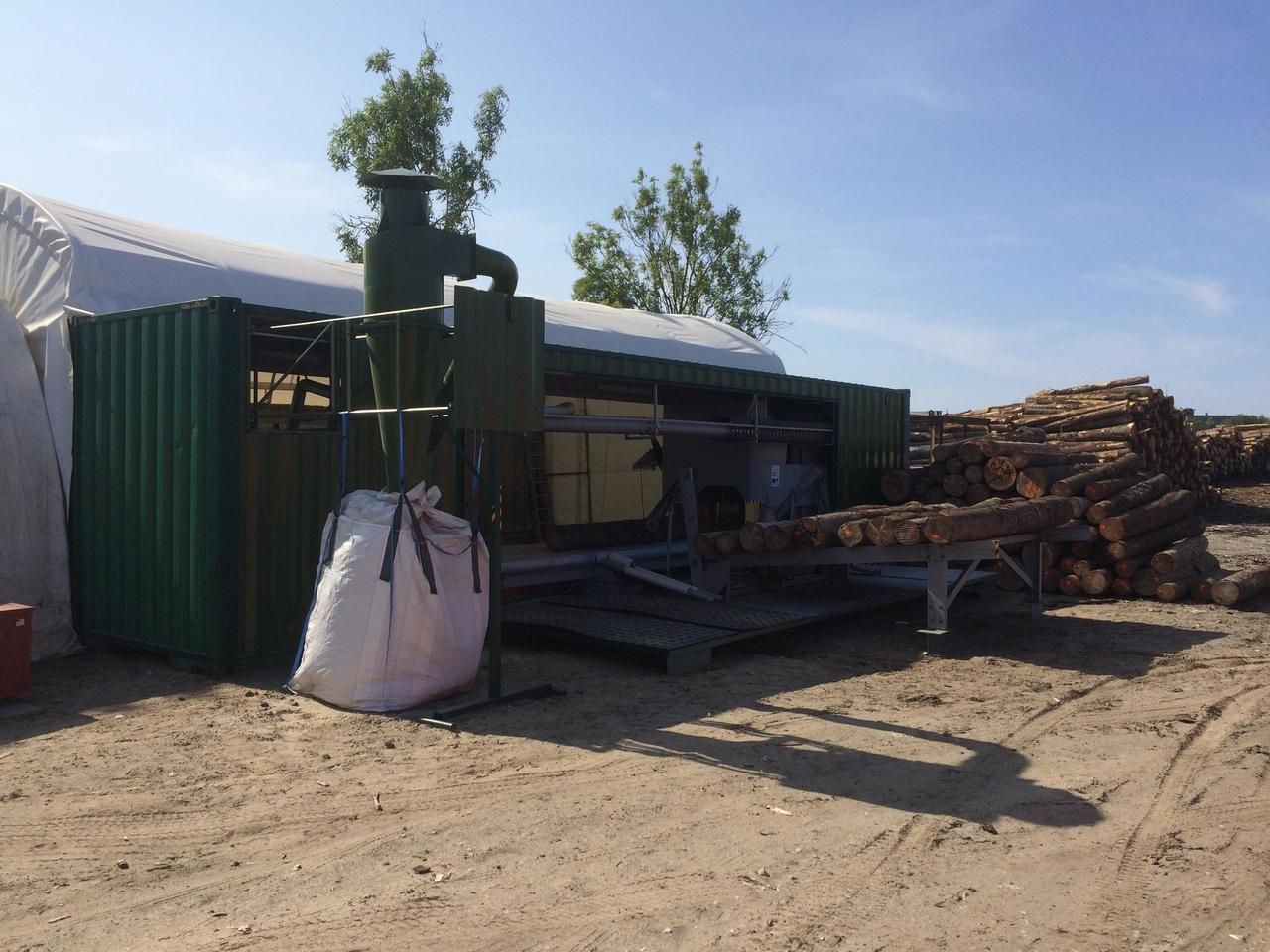

Planning to start sawmill business and would like to get it delivered in one package to avoid costly housing construction/renovation and engineering/electrical works at sawmill location ? There is good solution for it - REXWOOD mobile 40' shipping container installed dimensional sawmill with multi-rip attachment capable of cutting up to 40 m3 of edged lumber per 10 hrs shift (output is based on average log diameter of 400 mm with 6000 mm length).
Operational within 1 hour after delivery, REXWOOD 40' container sawmill also can be deployed deep in the forest with supplementary 20' container installed diesel generator thus you will be able to deliver valuable edged lumber only, leaving wood shavings and sawdust behind to be processed with timber logging site fall outs.
All REXWOOD equipment comes factory installed in 40' container with electrically open side ramps and consist of:
Electric motors operated log loading ramp installed on L 7.4 x W 2.4 meters side ramp operated by 24 V DC actuators.
Log feed rails length: 3 m.
CNC controller for lumber sizes programming, manual and automatic log cutting with customer memory preset buttons (4 pc.).
Touch screen PC with cut log optimization program for automatic log cutting, business and wane boards output calculation with production capacity record. Programmable list of customer lumber sizes, automatic and manual screen lumber positioning.
Side console for pause/resume sawmill operation
Multi-rip side attachment with two spindle 2x10 sawdisc powered by 2x30 kWt motors, slab cutting thickness 30 to 120 mm, width up to 400 mm.
7.6 kWt sawdust aspiration system dimensional/multirip saw connected with H 2000 mm x D 800 mm cyclone attachment and 3 meters cleaning hose.
Container Illumination: 4 x 65 Wt (3000 lumen) LED ceiling lights, 220 V AC.
Two tents: inter container span work tent L12 x W6 x 4.6 m and lumber sorting and storage tent L12 x W x 3.6 m
Each tent Illumination: 4 x 65 Wt (3000 lumen) LED ceiling lights, 220 V AC.
Twenty HDPE ground mats T 14 mm L 2400 mm x 1200 mm to keep your storage and work tents floor tidy in field locations.
REXWOOD mobile sawmill with integrated log loader and multisaw machine for increased productivity
REXWOOD RW 800-6/400-120
sawmill main unit characteristics:
Dimensional sawmill material capacity:
150 mm to 800 mm diameter logs (max 1100 mm custom)
3000 mm (2000 mm custom) to 6000 mm logs length
Cant size: max 205 mm x 205 mm (standard, larger is optional)
Saw blades: 2 x 560 mm saw discs (thickness 5.5 mm) with laser sights
Saw motors: 2 x 18.5 kWt electric 380 V AC
4 pc. Electric operated log grippers.
Cutting rate: one log every 4 min (based on average log diameter 250 mm)
REXWOOD main dimensional two disc saw can make unedged boards in sizes from T 10 mm (min) x W 400 mm (max) up to slab T 120 mm(max) for boards resaw at multi rip attachment.
Positioning of the sawdiscs from 90 deg. to 180 deg. (parallel) is required.
REXWOOD custom solutions offer even larger cut sizes of the slabs, please contact us for the quote.
